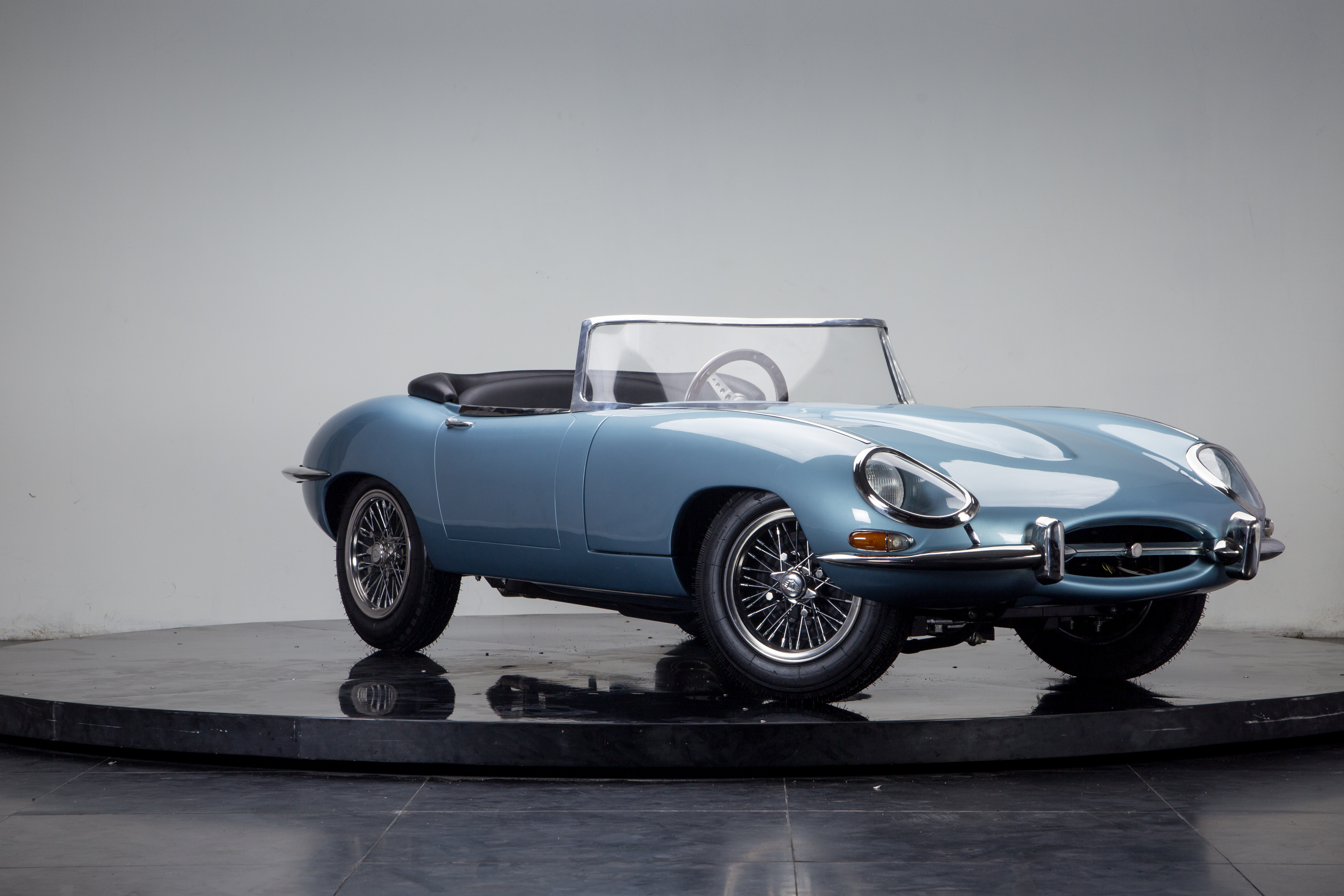

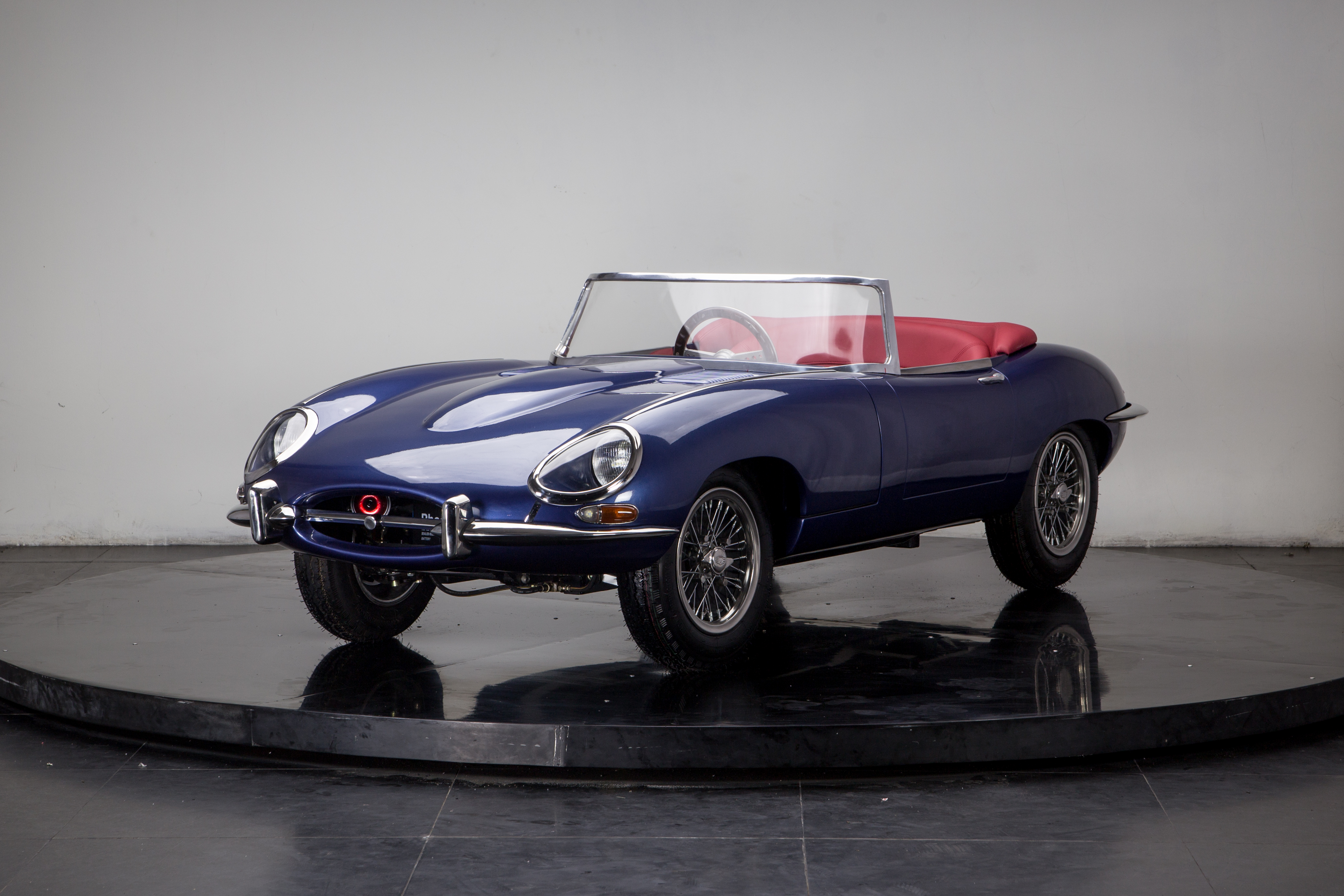

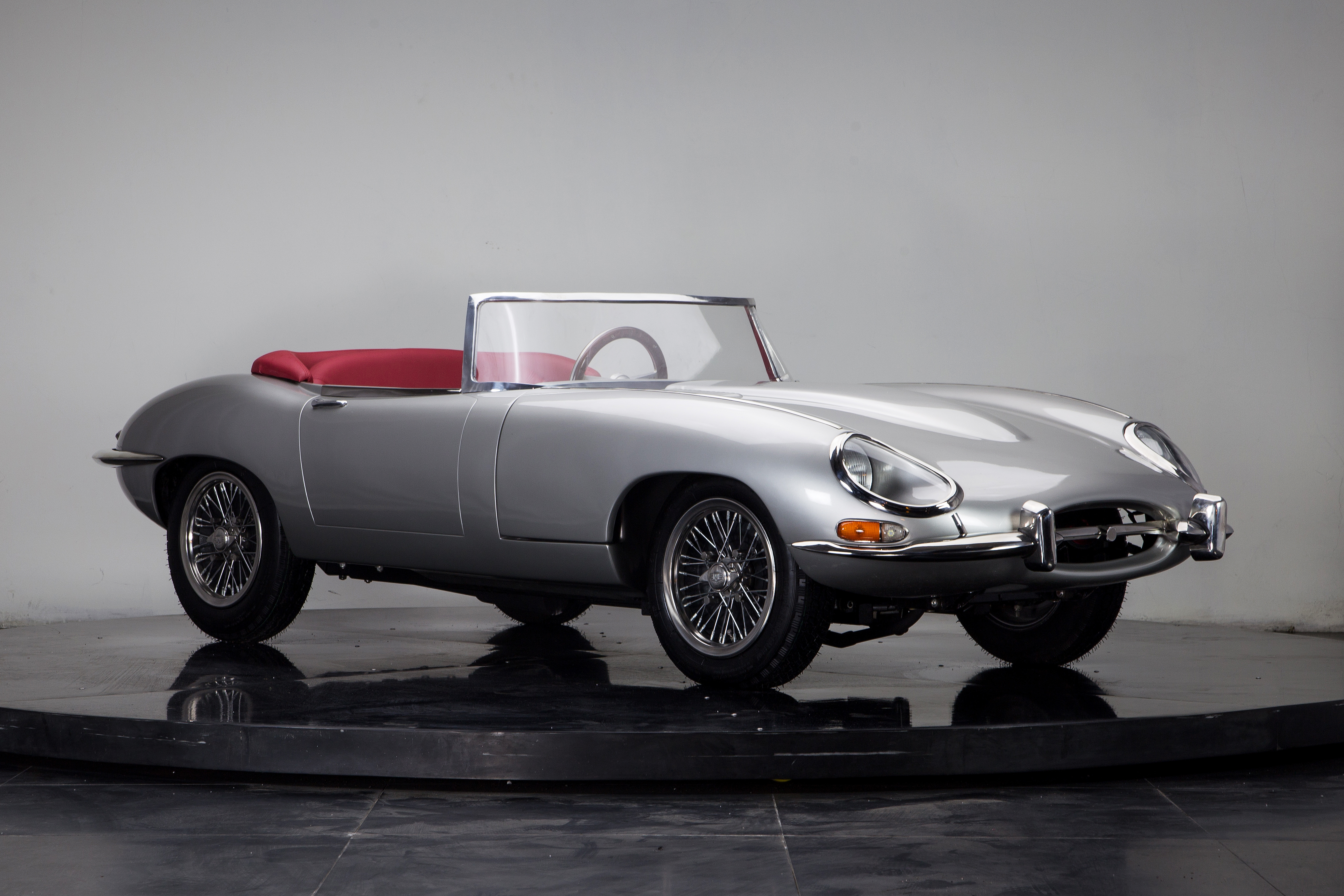

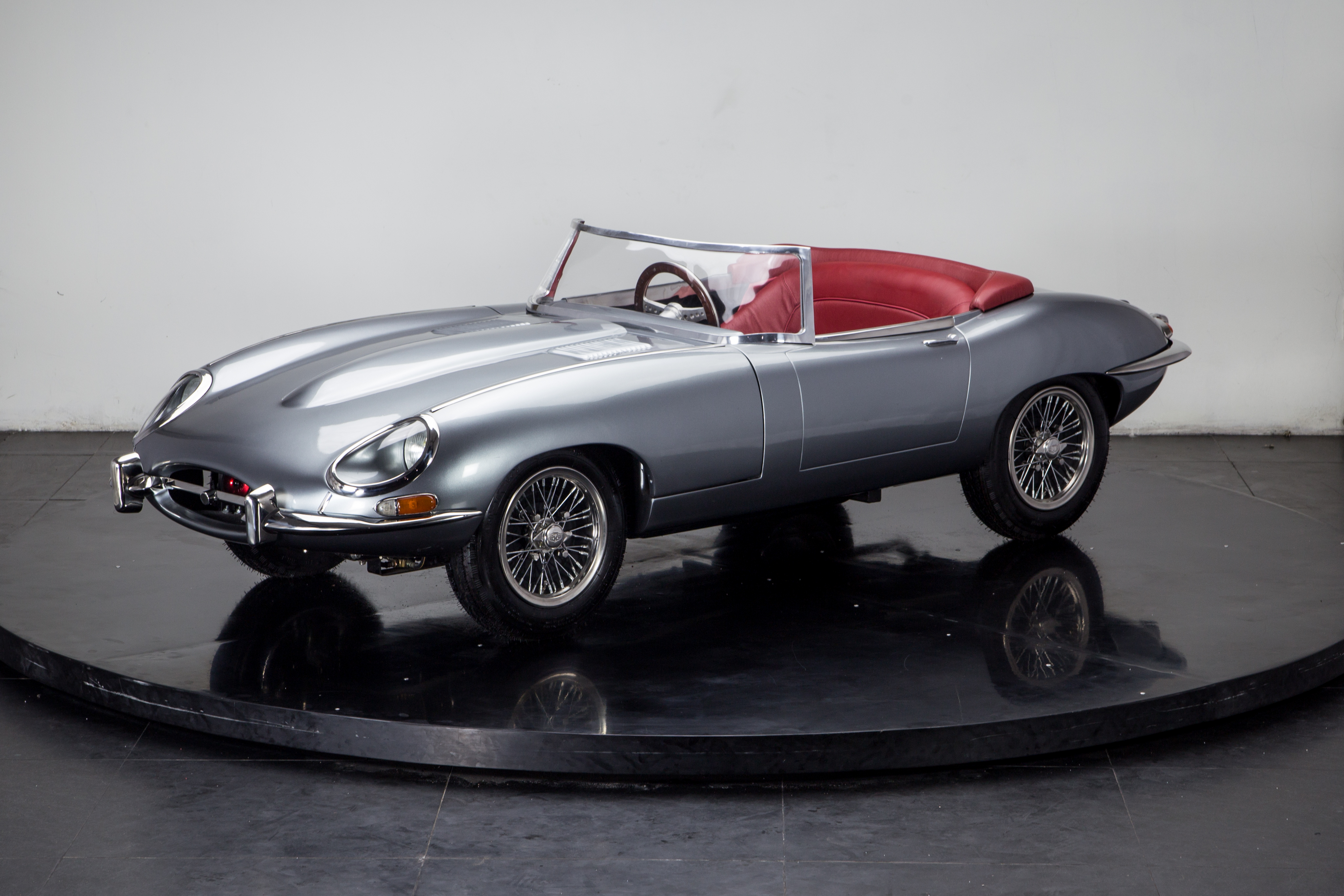

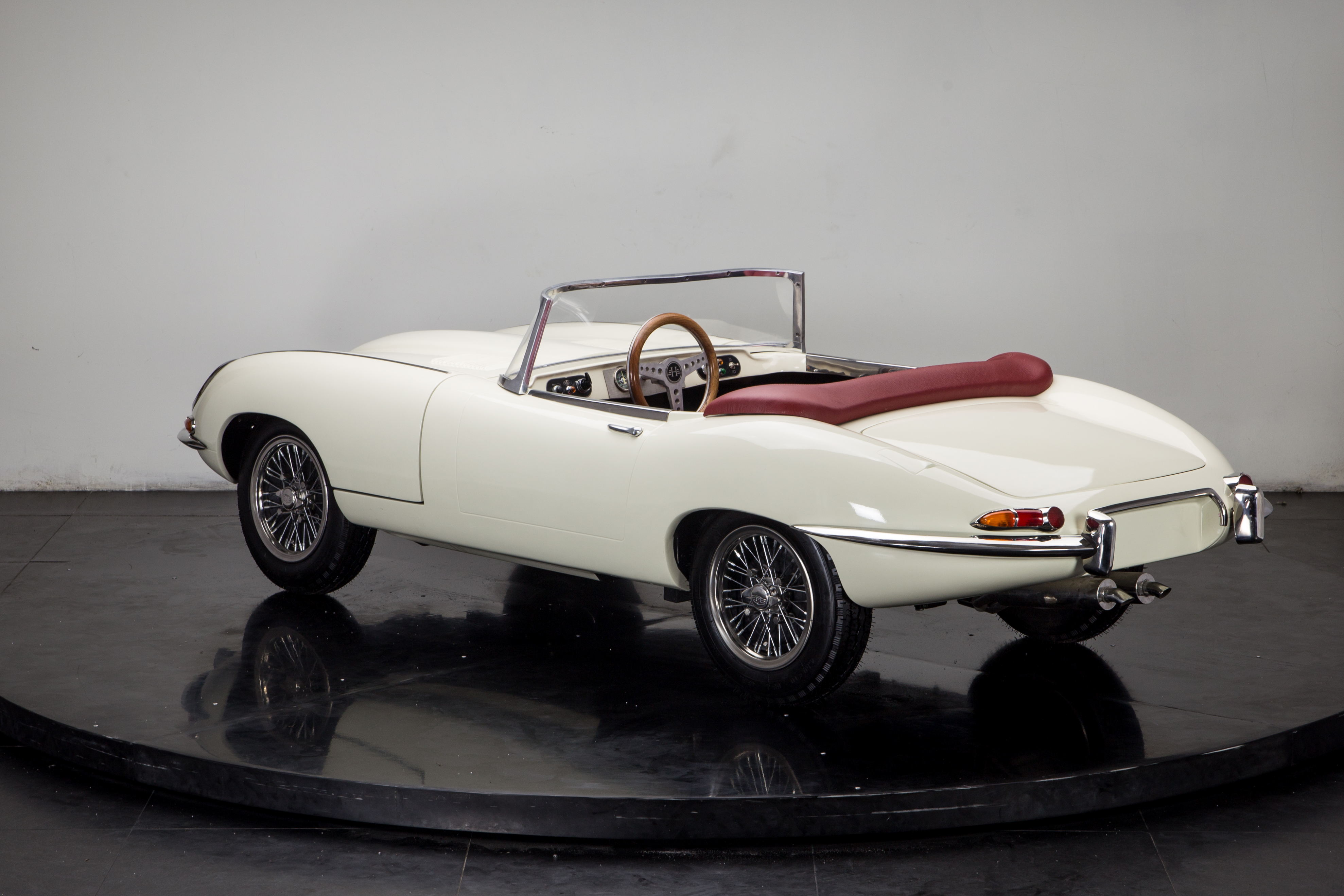

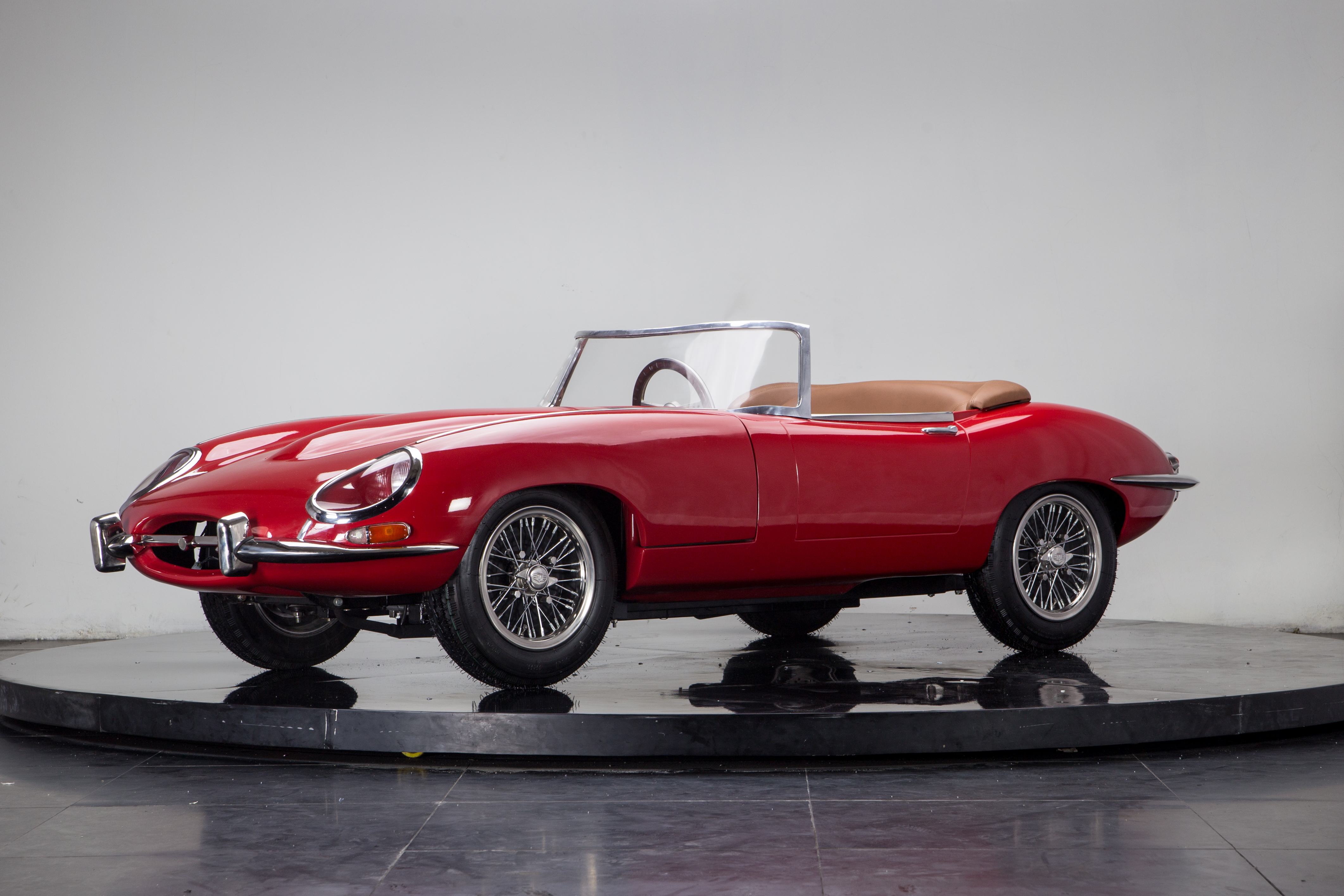

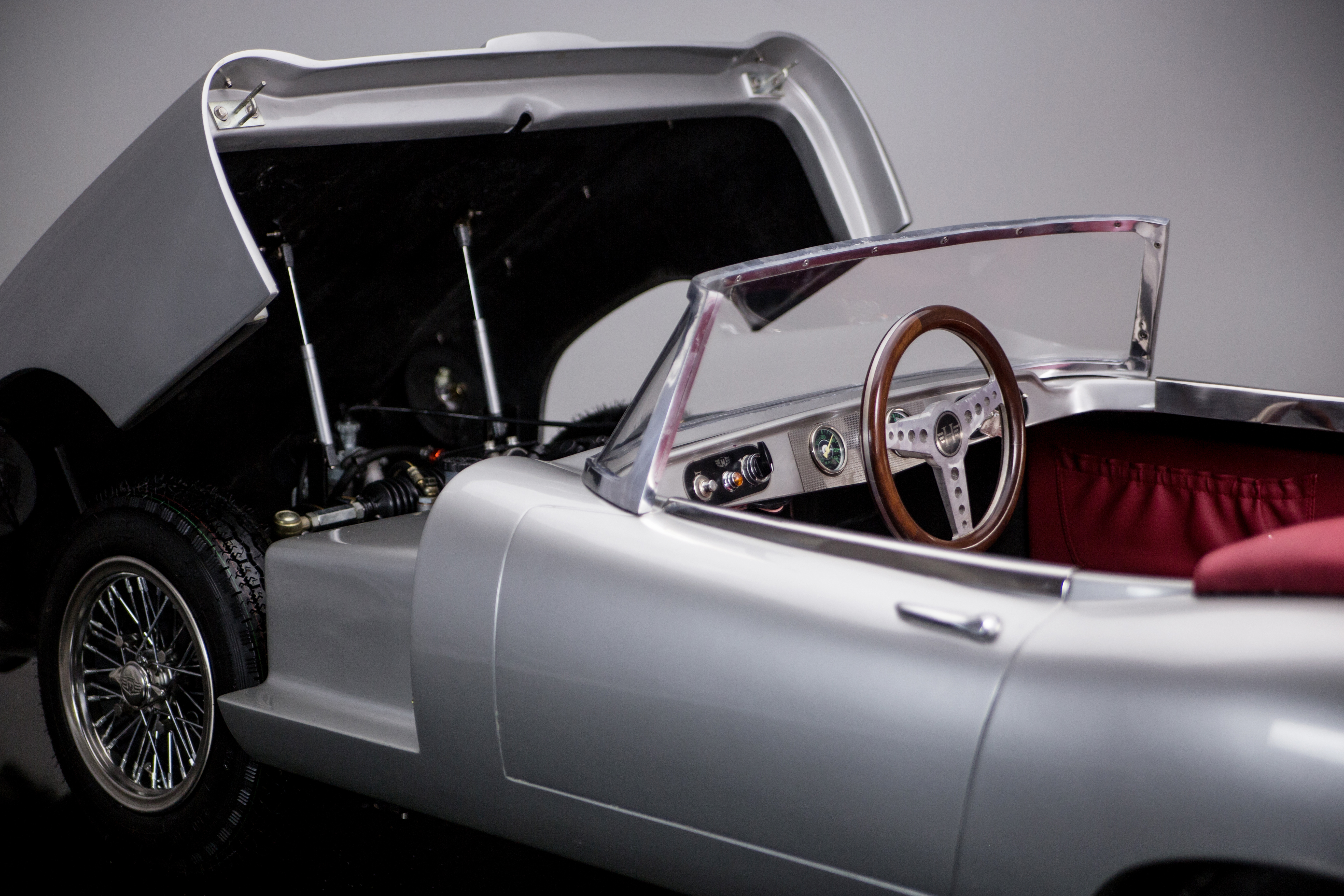

Series 1
Elegant futuristic and curvaceous 60s styling.
Performance
- In standard tune, Series 1 can reach 40 mph. A speed restrictor can be fitted for novice drivers.
- Loading capacity: Up to 250kg
Construction
- Jig-built steel box section chassis.
- Composite GRP body.
- Steel suspension swing arms.
System Specification
- Engine: 125cc front-mounted engine – rear wheel drive
- Transmission: 3-speed semi-automatic gearbox + reverse (no clutch, sequential gear change).
- Single prop-shaft drive to an open differential.
- Working lights, horn, electric starter key and indicators: 12 Volt.
Steering, Brake & Suspension
- Fully independent suspension, adjustable gas shock absorbers all around.
- Vented disks with dual pot callipers, and a hydraulic split braking system.
- Rack-and-pinion steering.

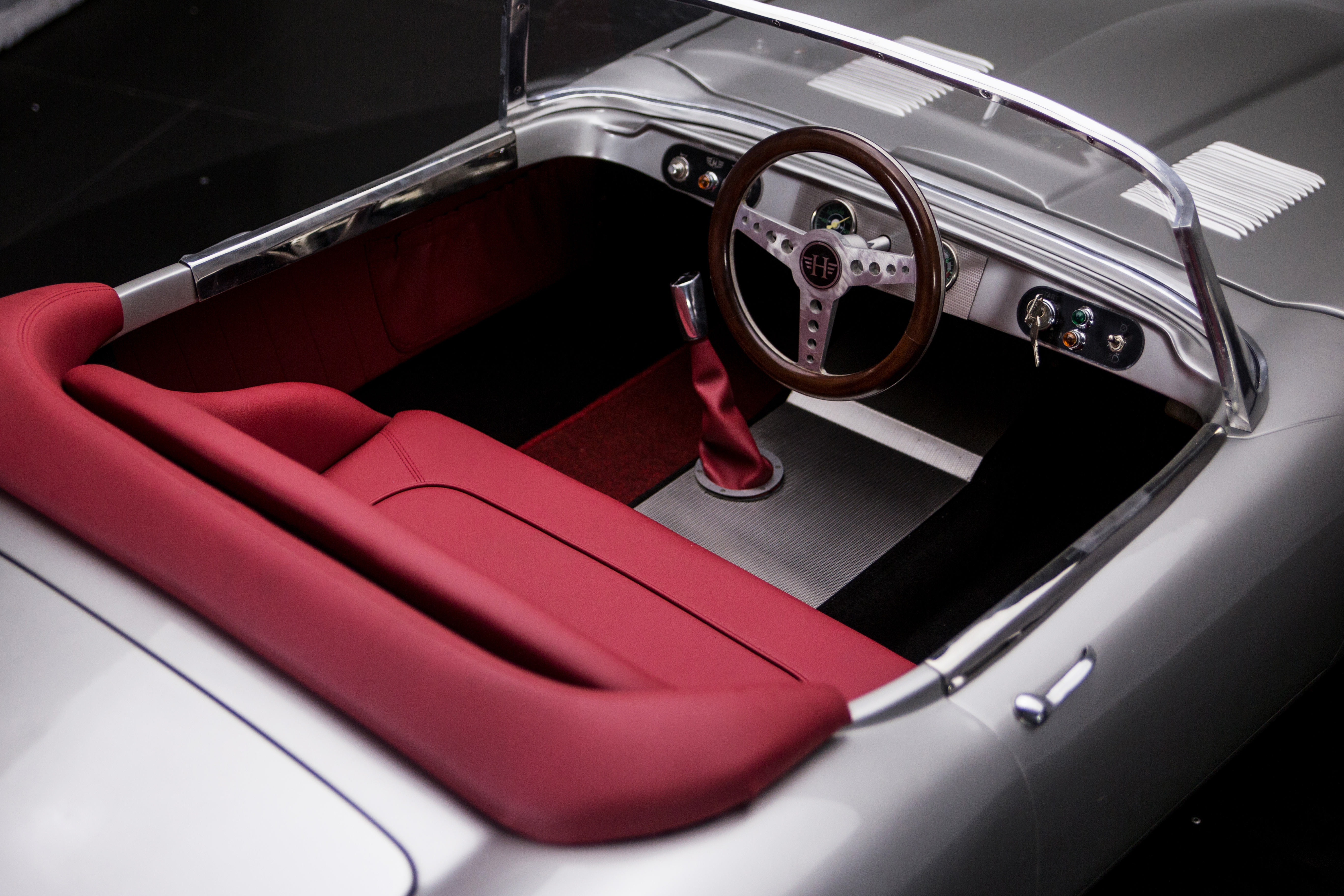

Body, Interior & Trim
- Vinyl or leather-trimmed GRP seat. The exterior is painted in automotive DuPont paint.

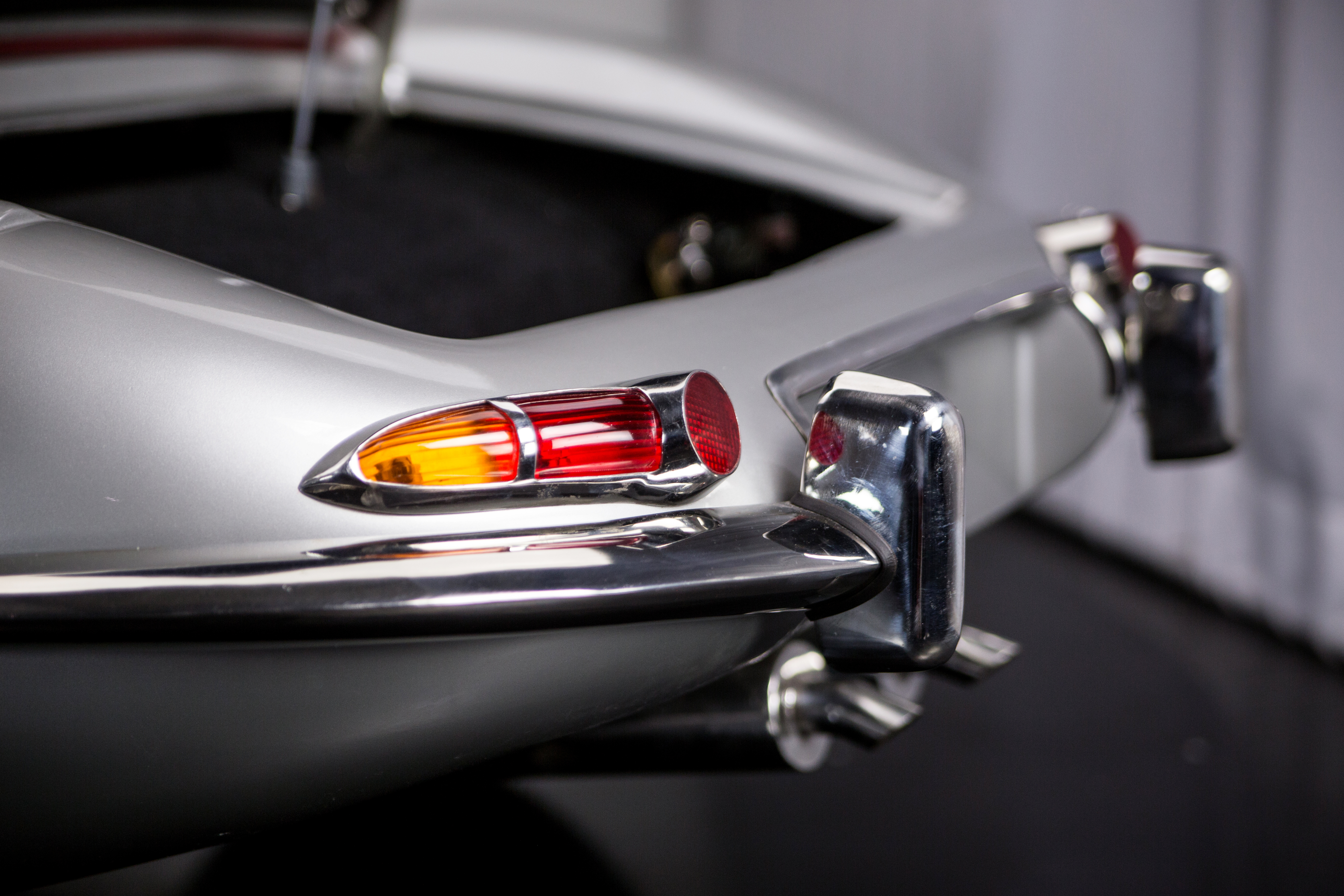

- Stainless steel brightwork.
Measurements
- Length: 2720mm.
- Width: 1040mm.
- Height: 720mm.
- Net weight: 241kg.
- Gross weight: 373kg.
- Ground clearance: 160mm.
